VCM LAMINATED METAL SHEET
VCM Laminated Steel Sheets (Vinyl Laminated Steel Sheets)
VCM Laminated Steel Sheets are a type of laminated steel or aluminum sheet made by bonding one or multiple layers of organic films such as PVC, PP, PET, PVF, or PVDF to the sheet’s surface. These sheets feature an attractive appearance and excellent processing performance. They provide exceptional resistance to corrosion, scratches, stains, and fire, along with flame-retardant properties. Aesthetically, they can achieve finishes ranging from low gloss to high gloss and from matte to pearlescent, allowing the creation of intricate and elegant patterns.
VCM Laminated Steel Sheets Presentation

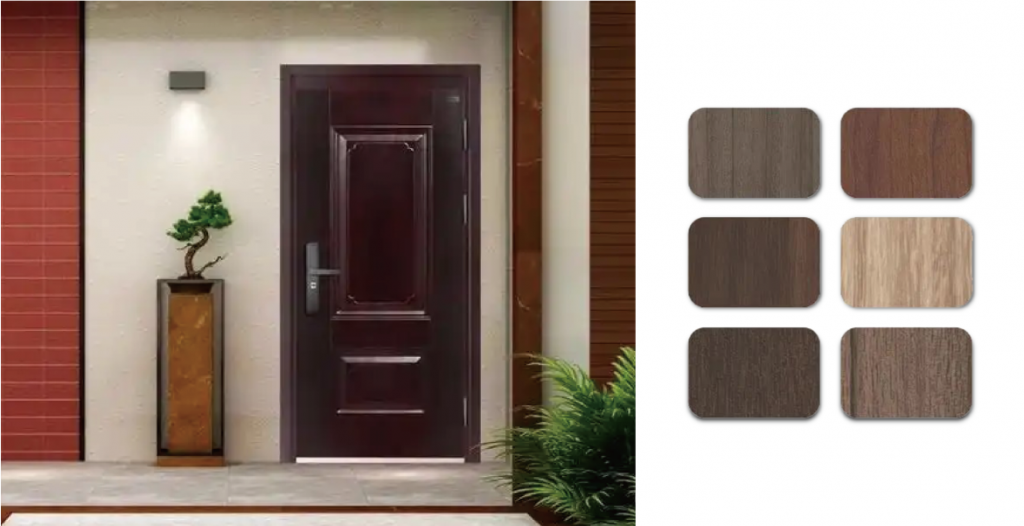

Wood Grain Series
Utilizing high-precision printing and embossing techniques, this series realistically replicates the texture and tones of natural wood on metal surfaces. It combines the natural aesthetics of wood with the strength and durability of metal, making it ideal for furniture, interior decoration, and home appliance exteriors that require a natural touch.
Pattern Series

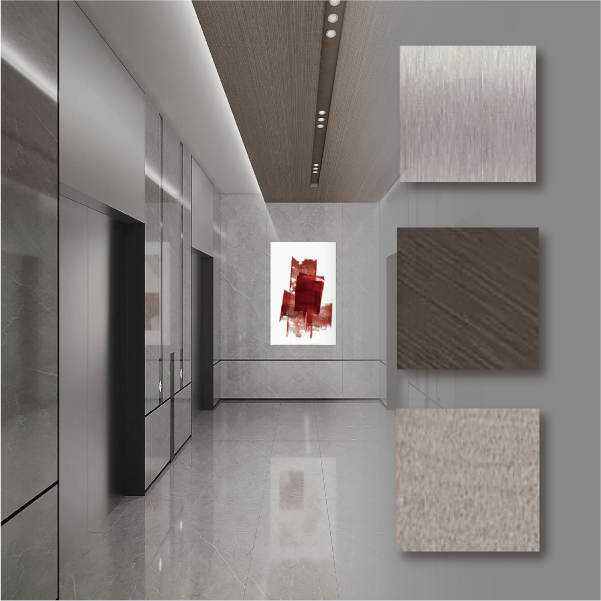

Focusing on geometric designs and artistic patterns, this series employs flexible printing and embossing techniques to deliver customized decorative effects. Its standout features include versatile pattern designs, high weather resistance, and excellent corrosion resistance, making it ideal for luxury architectural decoration, interior wall panels, and premium elevator finishes.

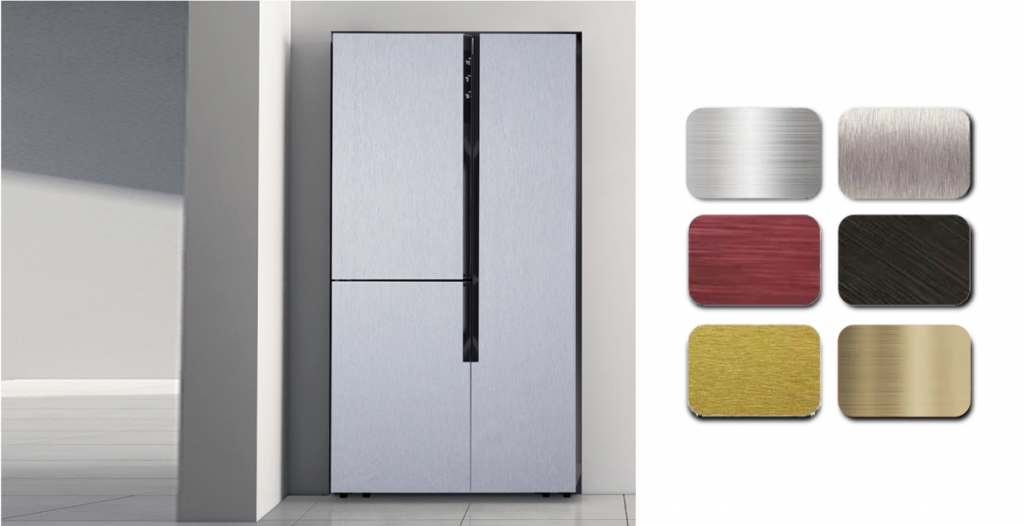

Metallic Color Series
This series utilizes metallic coatings and precision processing to achieve a highly lustrous and textured metallic finish. It is perfect for highlighting modern and industrial style decoration needs. Key features include high surface gloss, even color distribution, strong weather resistance, and excellent scratch resistance. It is commonly applied in home appliances, modern furniture, high-end building facades, and decorative elements.
Advantages
- Processing Capabilities: Depending on customer requirements and the type of metal substrate, VCM Laminated Steel Sheets offer excellent processability, including deep drawing and bending capabilities.
- Aesthetic Effects: Customizable patterns and color designs can be applied to the film coating, giving the VCM Laminated Steel Sheets a vibrant and visually appealing appearance.
- Durability: The surface plastic film provides resistance to scratches and friction, significantly extending the product’s service life.
- Corrosion Resistance: The film layer effectively isolates the steel sheet from direct contact with the external environment, enhancing its corrosion resistance.
- Stain Resistance: With a smooth and flat surface, the sheets are resistant to staining from dirt, dust, and fingerprints, and are very easy to clean.
- Fire Resistance: Achieved with a Class B fire resistance certification.
Product Details

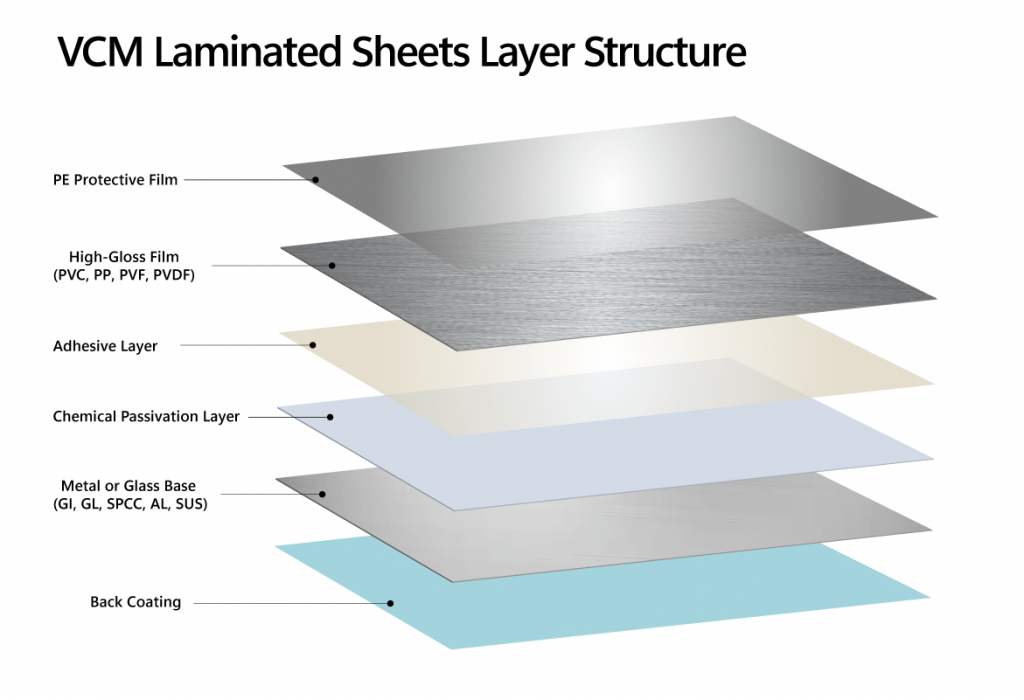

Product Structure:
Below is the detailed layers of VCM Laminated Steel Sheets.
VCM Specifications and Ordering Conditions
| Item | Details |
|---|---|
| Base Material Options | Cold-rolled steel sheets, hot-dip galvanized steel sheets, electro-galvanized steel sheets, stainless steel sheets, aluminum sheets, etc. |
| Material Grades | SGCC, SPCC, DX51D, DX52D, DX53D, DX54D. |
| Base Material Thickness | Steel Sheets: 0.2–1.5mm Aluminum Sheets: 0.3–2.5mm |
| Dimensions | Width: ≤1500mm Length: ≤5000m |
| Total Thickness | Base material thickness + 0.05–0.18mm (film layer thickness) |

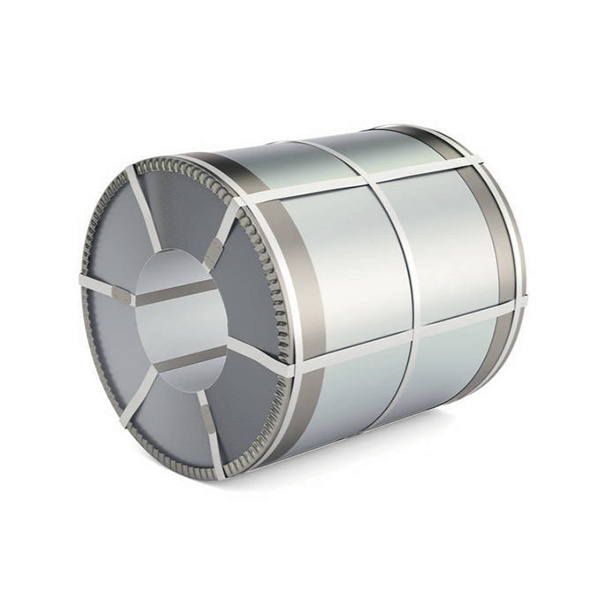

| Available as Coils | Width: ≤1500mm Single Coil Weight: ≤5500kg Steel Coil Inner Diameter: ≤510mm |
| Minimum Order Quantity (MOQ) | 500 square meters |
| Production Lead Time | Approximately 30 days after order confirmation |
| Payment Methods | T/T, L/C, Western Union |
VCM Combustibility Test
| Standard | GB 8624:2012, GB/T 5464, GB/T 20284 | ||||
|---|---|---|---|---|---|
| TESTING ITEMS | SPECIFICATIONS | TEST RESULTS | DETERMIN ATION | ||
| A2 | Non-combustibility test | Temperature Rise in Furnace (△T ℃) | ≤50 | 16 | Pass |
| Quality Loss Rate (△m %) | ≤50 | 5 | Pass | ||
| Duration of Continuous Combustion (tε S) | ≤20 | 0 | Pass | ||
| Monomer Combustion Test | Rate of Combustion Growth Index (FIGRA0.3MJ W/s) | ≤120 | 32 | Pass | |
| Flame transverse spread | Non-reachable specimen long wing edge | Meet | Pass | ||
| Total Heat Release within 600 Seconds (THR600s MJ) | ≤7.5 | 2.9 | Pass | ||
| S1 | SMOGRA (m2/s2) | ≤30 | 6 | Pass | |
| TSP600s (m2) | ≤50 | 11 | Pass | ||
| TESTING RESULT | The test results meet the requirements of A(A2-s1) in GB 8624. | ||||
Workability
HK Hantie’s laminated metal products are versatile in processing, offering capabilities such as deep drawing, steel sheet punching, V-bending, 180° bending, printing, CNC engraving, and custom requests.
We also provide cutting services for film-coated glass to meet customer needs.
APPLICATIONS
- Home Appliance Casings

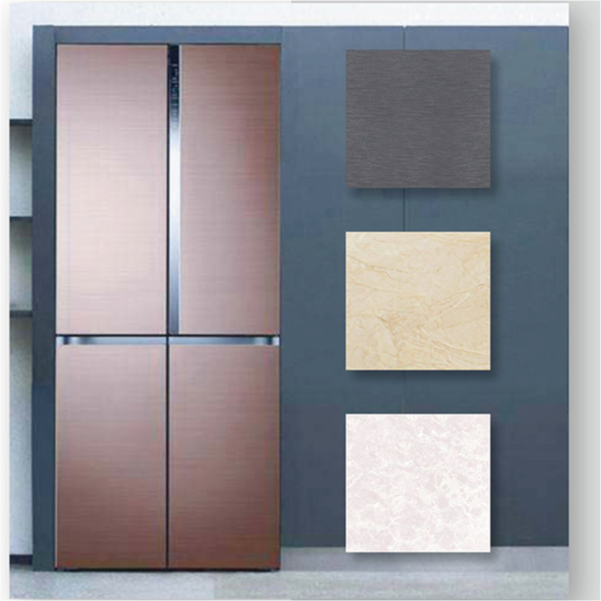

Washing machine panels, refrigerator door panels, air conditioner panels, oven panels, television front and back panels, 3C products. - Indoor Applications
Elevators: Elevator cabin panels, elevator door panels.
Interior Decoration: Door panels, wall panels, ceiling panels, bathroom wall panels.
Furniture: Cabinets, display cabinets.
Industrial: Cleanroom wall panels, purification system interior walls. - Outdoor Decoration
Building Facades
